RVF 740 - vacuum syringe
About the product

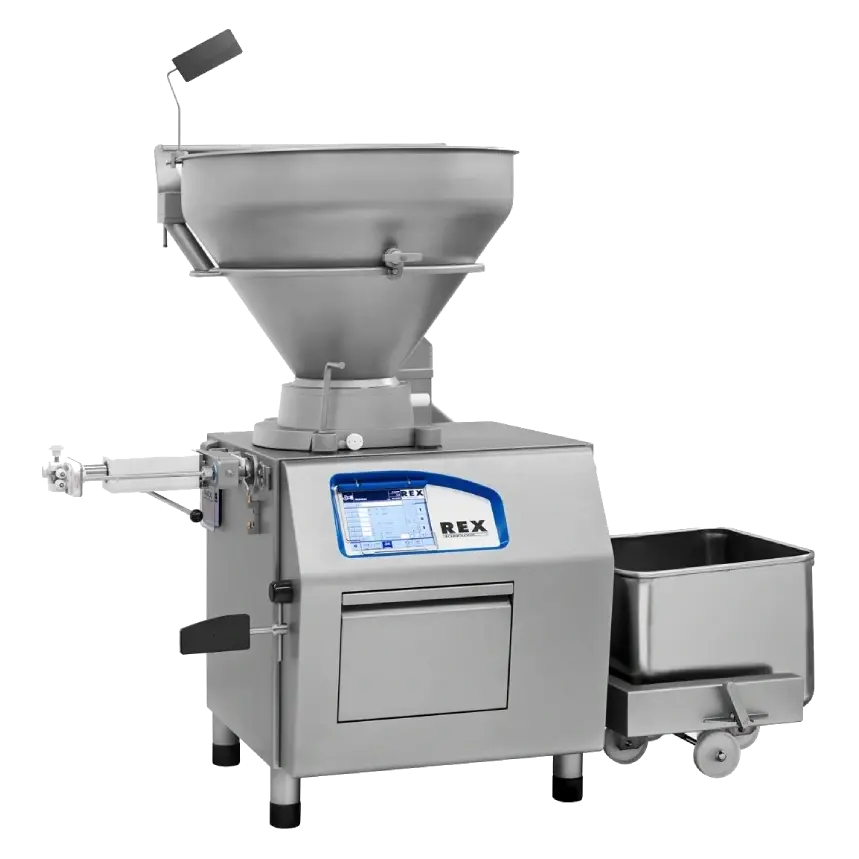

The RVF 740 model is designed for medium-sized production. The smooth and hygienic compact body of the filler is self-supporting and made entirely of high-quality stainless steel, which facilitates daily cleaning of the equipment.

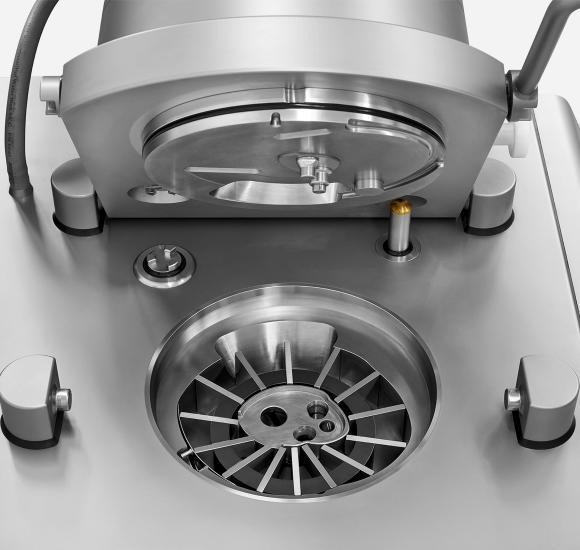

A large-diameter gate (rotor-plate) feed mechanism with a reinforced design guarantees exceptional portioning accuracy in long-term operation, and also ensures gentle movement of the raw material, preventing its compression, lubrication and fiber breakage, which is especially important when filling minced meat with a structure and large inclusions. The rotors are equipped with 8, 12 or 14 gates, as well as 14 gates, of which 7 are plugs. Compensating pistons in the rotor additionally maintain portioning accuracy. All models of the 700 series can be equipped with an MC-3 grinder attachment.

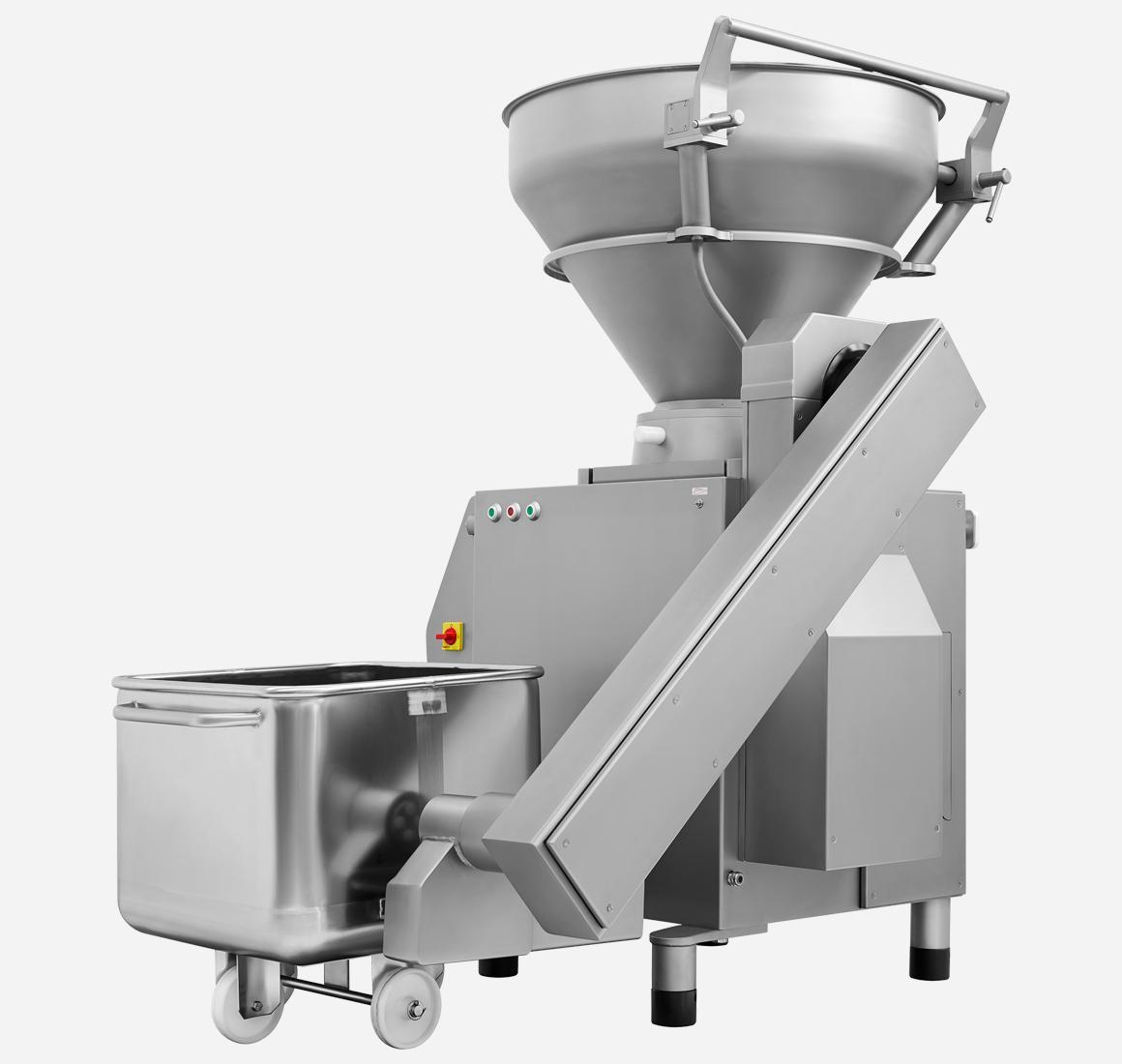

The RVF 740 can be optionally supplied with a lifting and tilting loading device for standard 200 l trolleys. Hopper versions – depending on the production format – are 250 l or 350 l.
The RVF 740 model is designed for medium-sized production. The smooth and hygienic compact body of the filler is self-supporting and made entirely of high-quality stainless steel, which facilitates daily cleaning of the equipment.
A large-diameter gate (rotor-plate) feed mechanism with a reinforced design guarantees exceptional portioning accuracy in long-term operation, and also ensures gentle movement of the raw material, preventing its compression, lubrication and fiber breakage, which is especially important when filling minced meat with a structure and large inclusions. The rotors are equipped with 8, 12 or 14 gates, as well as 14 gates, of which 7 are plugs. Compensating pistons in the rotor additionally maintain portioning accuracy. All models of the 700 series can be equipped with an MC-3 grinder attachment.
The RVF 740 can be optionally supplied with a lifting and tilting loading device for standard 200 l trolleys. Hopper versions – depending on the production format – are 250 l or 350 l.
Advantages
- large diameter rotor for gentle movement of the filling mass
- minimal energy consumption
- modern hygienic design
- easy operation via 12-inch touch screen
- modern servo drive concept – portion accuracy
- easy cleaning and the ability to quickly change the assortment due to the folding funnel
