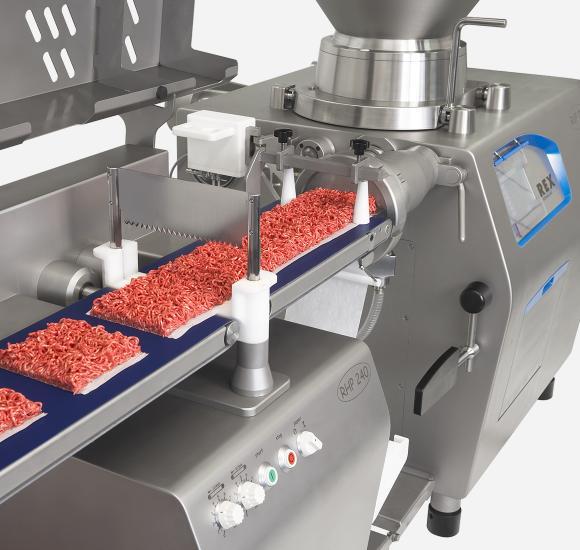

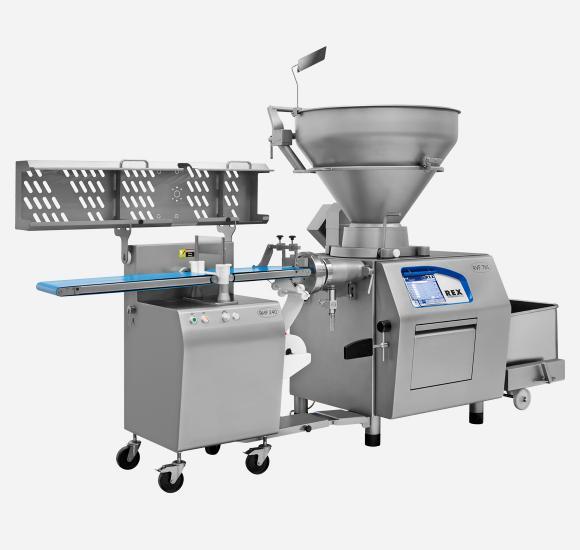

MC 3-3 with RHP 240 - line for the production and portioning of minced meat
About the product
The MC 3-3 with RHP 240 is an industrial REX line for grinding, shaping, and precisely portioning minced meat. Pre-ground meat is dosed using a vacuum filler, passed through the MC 3-3 grinder to the desired grain size, and the RHP 240 forms the product flow and cuts it into portions of the specified size. The line's throughput reaches 120 portions per minute, with portioning accuracy of ±1%.
The MC 3-3 with RHP 240 is an industrial REX line for grinding, shaping, and precisely portioning minced meat. Pre-ground meat is dosed using a vacuum filler, passed through the MC 3-3 grinder to the desired grain size, and the RHP 240 forms the product flow and cuts it into portions of the specified size. The line's throughput reaches 120 portions per minute, with portioning accuracy of ±1%.
Chopping and portioning in one line
Pre-chopped raw materials are first precisely dosed by the REX vacuum filler and then fed to the MC 3-3 grinder attachment, where they are ground to the desired structure.
The grinder drive speed is independently adjustable, allowing the process to be adapted to a specific product and achieving a uniform minced meat pattern.
Gentle product chopping
The cutting system is designed to minimize product heating during chopping.
The vacuum filler rotor simultaneously facilitates the removal of Air is removed from the minced meat, which has a positive effect on the product structure and the accuracy of subsequent portioning.
MC 3-3 Cutting Set
The MC 3-3 uses modular cutting sets. The catalog shows an 8-component cutting set.
The final grid is selected depending on the required size and degree of grinding of the product. The width of the formed portion can be between 60 and 220 mm.

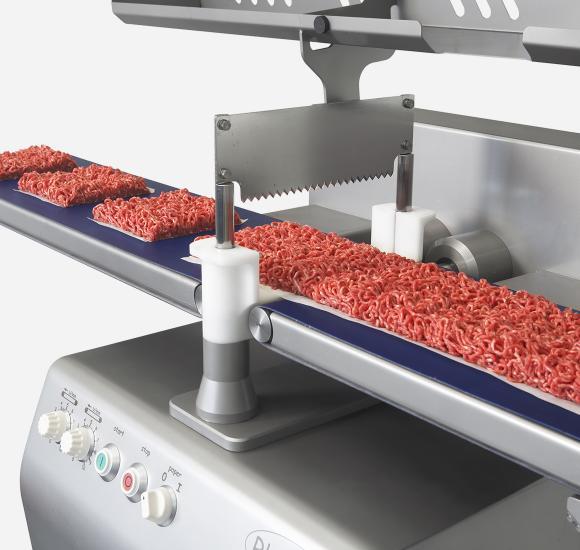

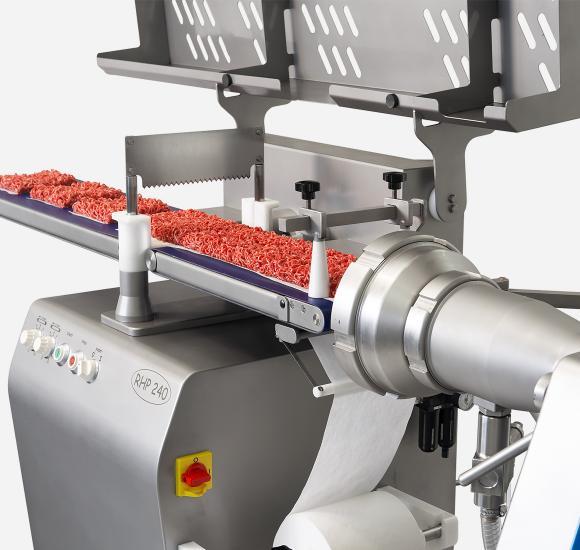

Precise portioning RHP 240
The RHP 240 device is installed after the grinder attachment and receives the outgoing flow of minced meat.
The system transports the product and cuts it into portions of a precisely specified size. The maximum speed is up to 120 portions per minute, the accuracy is +/- 1%.
The current official REX website lists the same key figures: a capacity of up to 120 portions/min and a portioning accuracy of +/- 1%.

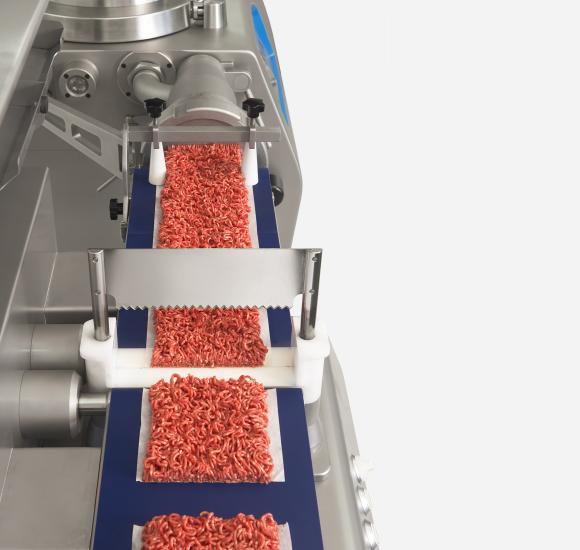

Two independent conveyors
The RHP 240 is equipped with two conveyors with independently adjustable speed.
Their speed can be synchronized with the output of the entire line, ensuring uniform product transfer and consistent portion shape.
Various portion sizes
According to the technical table According to the catalog, the RHP 240 allows for the following range:
Minimum portion:
- Width - 60 mm;
- Height - 20 mm;
- Length - 100 mm.
Maximum portion:
- Width - 220 mm;
- Height - 100 mm;
- Length - 500 mm.
REX also confirms the maximum format of 220 x 100 x 500 mm.
Paper feed
The RHP 240 is equipped with a paper feeder that allows you to place formed portions directly on a paper backing.
The catalog includes rolls:
- maximum outer diameter - 300 mm;
- inner diameter - 25-70 mm;
- maximum width - 240 mm;
- paper without a cardboard core is permitted.
Integration with the packaging line
After portioning, the product can be transferred to automatic packaging equipment. The manufacturer specifically emphasizes the ability to quickly integrate the RHP 240 into an existing production line.

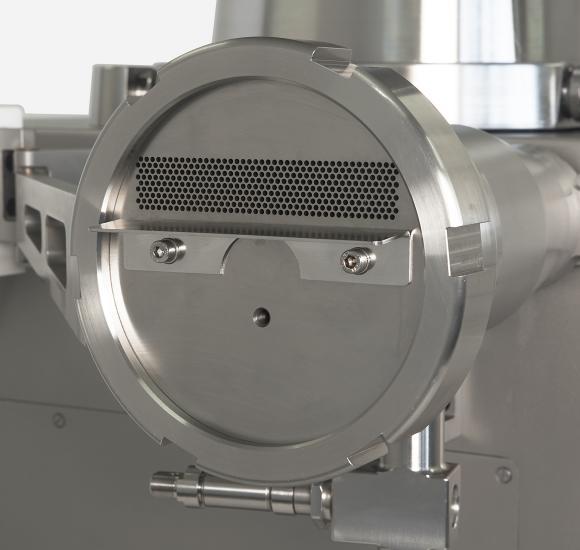

MC 3-3 Grinder Attachment
Performs final grinding of the product immediately after precise dosing with a vacuum filler. The final grinding grid is selected to suit the desired product grain size and format.
Various Cutting Sets
The modular design allows for the use of different cutting tool options depending on the product and the desired degree of grinding.

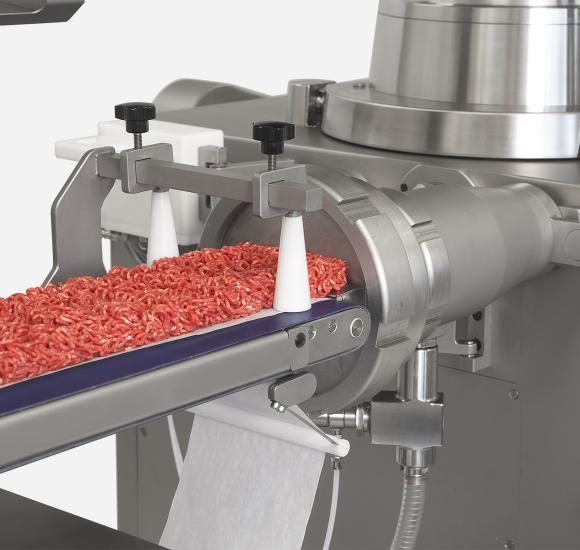

RHP 240 Paper Feeder
Automatically feeds a paper backing under the finished minced meat portions.
MC 3-1 Grinder Attachment
A separate solution from this catalog for filling, portioning, and grinding. Uses a 130 mm diameter cutting set and 1.5–7.8 mm end grids as specified in the catalog.
Separator for MC 3-1
Allows the separation of sinews and bone fragments.
