RBF 125 with FB 100 - Hamburger Former
About the product
The RBF 125 is a REX hamburger former for producing round, oval, and rectangular hamburgers and patties from a variety of ingredients. The unit connects directly to a REX vacuum filler and forms portions with a diameter of 60–130 mm and a height of 8–25 mm, with a throughput of up to 80 portions per minute. Quick-change molding plates allow for quick changes to a different product size or shape.
The RBF 125 is a REX hamburger former for producing round, oval, and rectangular hamburgers and patties from a variety of ingredients. The unit connects directly to a REX vacuum filler and forms portions with a diameter of 60–130 mm and a height of 8–25 mm, with a throughput of up to 80 portions per minute. Quick-change molding plates allow for quick changes to a different product size or shape.
Precise Forming and Portioning
A vacuum filler feeds a predetermined portion of minced meat directly into the RBF 125 forming plate. Once filled, the mold is moved horizontally by a pneumatic cylinder, and the finished product is ejected onto a discharge conveyor.
This principle ensures a consistent size and weight of finished portions.
Various Product Shapes
The RBF 125 can produce products:
- round;
- oval;
- rectangular molds.
Product size can be changed by changing the mold plate. No special tooling is required, reducing changeover time when changing product lines.
The current official REX website also confirms the ability to produce round, oval, and rectangular products and a molding range of 60-130 mm in diameter and 8-25 mm in height.

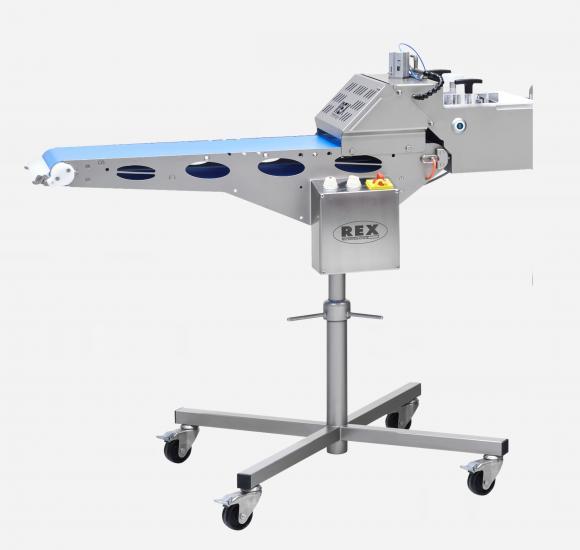

FB 100 Belt Conveyor
The molder is installed in conjunction with the FB 100 belt conveyor. After forming, the finished patties are automatically transferred to a conveyor belt, from where they can be removed by the operator for further processing or packaging.
This design allows for a compact, continuous production process.
Working with sticky products
When processing sticky minced meat, the equipment can be equipped with a water spray system. This reduces product sticking to the forming elements and ensures more stable line operation.

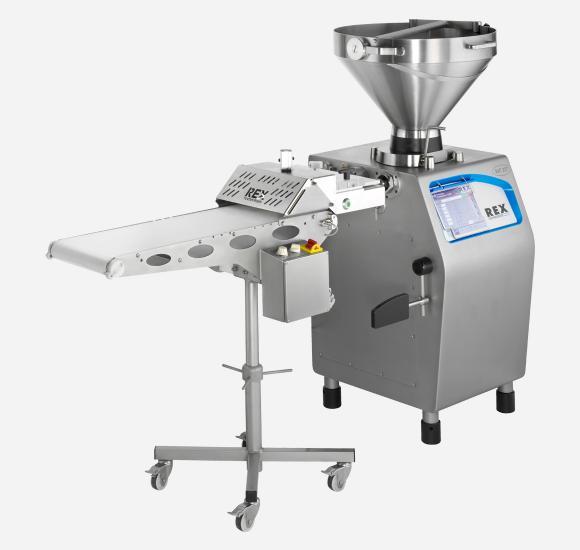

Easy integration
The RBF 125 is designed for connection to REX vacuum fillers of the RVF 300-900 series. The molding process is controlled by a vacuum filler control system.
Hygiene and Maintenance
The design is tailored to the requirements of food production. The manufacturer specifically notes:
- easy maintenance and setup;
- hygienic design for quick cleaning;
- quick change of molding plates;
- high accuracy of portion size and weight;
- no need for special tools during changeover.
FB 100 Belt Conveyor
Receives formed products directly from the RBF 125 and transports them out of the forming zone. In this configuration, the RBF 125 is mounted directly on the FB 100.
Water Spray
Designed for handling sticky minced meat products and helps prevent the product from sticking to the forming elements.

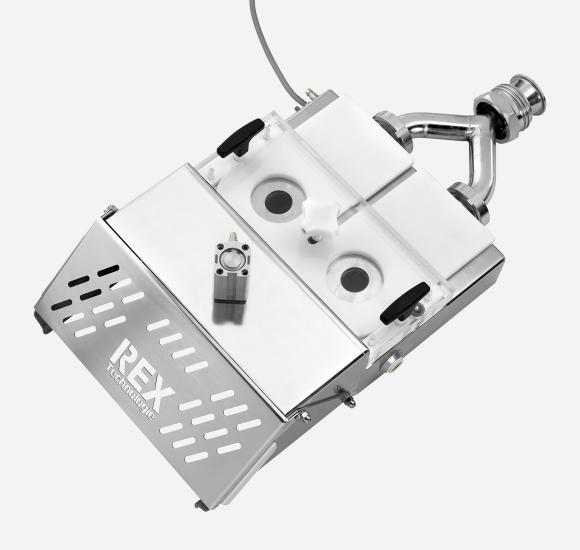

Interchangeable Forming Plates
Allow you to change the size and geometry of the finished product. The plates are replaced without special tools, speeding up product changeover.
Belt Press
A separate configuration of the RBF 125 production line with the FB 100 and a belt press is available.
